Turner Super T-40A (T-40AS)
"Ophelia Bumps!"

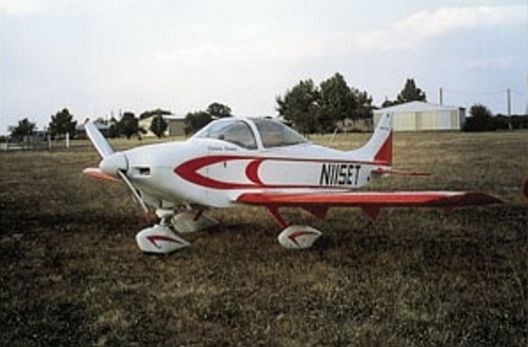

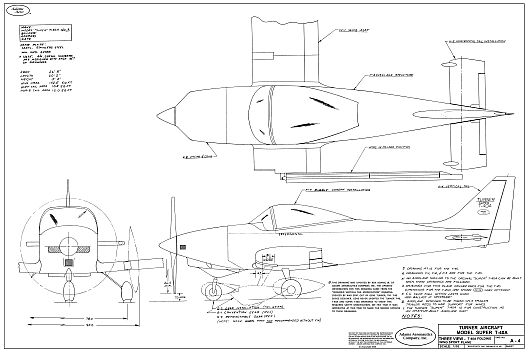

Click on this link to view the full size 3-view of the Turner Super T-40A drawing
T-40AS Specifications
Dimensions:
Wingspan 26' 8" Wing chord 3' 6" Length 20' 11" Height (top of cabin) 6' 0" Cockpit width 3' 4" Wings folded 7'10" Wing area 96.2 sq. ft. Flap area 9.9 sq. ft. Vertical tail area 9.6 sq. ft. Horizontal tail area 12.0 sq. ft. Gross weight 1650 lbs. Empty Weight (Prototype) 1100 lbs. Useful load 550 lbs. Fuel 180 lbs. (30 gal.) Baggage 30 lbs.
Performance:
Vmax – Max speed 180 mph Vcr - Cruise speed 155 mph Vs - Stall Clean 60 mph Vso – Stall, Flaps 54 mph Va – Maneuvering speed 125 mph Vd – Red line 220 mph Vgust 140 mph Range – Max No wind 625 miles Rate of Climb @ SL 1,260 ft/min Service Ceiling 14,000 ft. Takeoff Distance 850 ft. Landing Distance 1,400 ft.
Powerplant:
Super T-40A Design:
Engine Lycoming O-320 Design Horsepower 150 H.P. Low Range 125 Fuel Capacity (US Gal.) 30
H.P. High Range 150
Wing Design Low Folding Wings Yes No. of Seats 2 Tandem No Cockpit Width (in) 40 Landing Gear Tricycle, Tailwheel Materials Composite, Wood, Steel and Aluminum
Performance figures are based on the following: Super T-40A (Bubble canopy) with tricycle landing gear and 150 hp engine. The engine horsepower range that has been flown on this design is 100 hp (B-BRIO in the UK) to 150 hp. The prototype Super T-40A has been successfully flown with a Lycoming O-320 150 hp. Gene Turner recommended the 150 hp range for the Super T-40A. Both conventional and tricycle landing gear options are available on the Super T-40A. Each undercarriage option is depicted in the drawings and the builder may choose which option to build. The landing gears were designed using this FAA FAR 23.471, Ground loads as a guide. (The remainder of FAR 23 was used where appropriate.) Stress analyses and static load testing were used to substantiate the aircraft structure.
U.S.P.S. mail to Alaska: $25.00
U.S.P.S. mail to Hawaii: $30.00
U.S.P.S. mail to foreign countries: Contact us for shipping costs.
The plan set will be shipped out insured, rolled rather than folded and placed in a shipping tube for protection. You may use cash, personal check (must clear both banks), US Postal Money Order, or Certified Check for payment purposes. Note: Georgia residents must add 7% sales tax.
If you wish to purchase online, please use PayPal as your option, this will allow you to use:
Click on the PayPal image below to go to the PayPal website. Use "contact @ adamsaero dot com" for the recipient ("To") e-mail address. Remember to add the appropriate shipping amount plus tax if applicable to the plans total. Please e-mail "kenneth.l.adams.jr @ gmail dot com" or call 404.219.7326 when you use PayPal, we have had issues with their notification process.
************************************************************************************************************
Turner Super T-40A Gallery

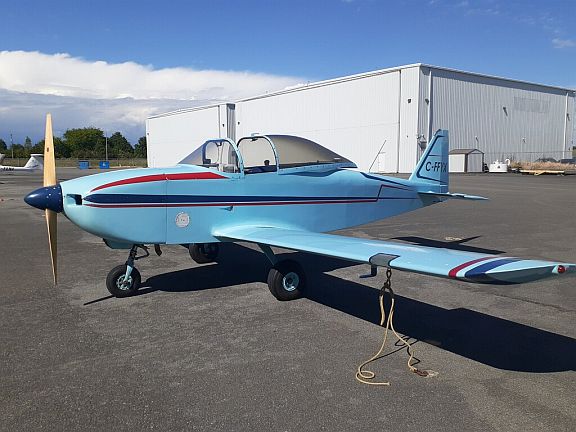

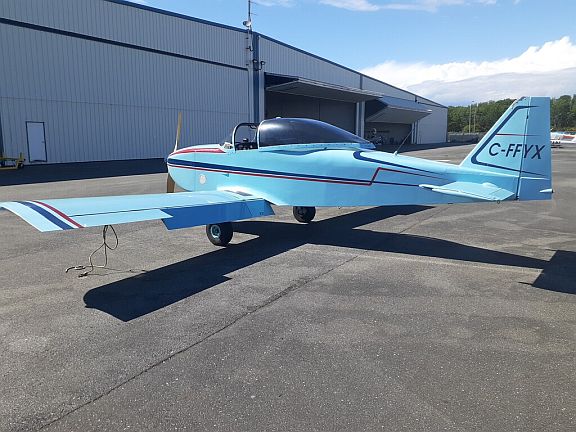

C-FFYX is a Turner Super T-40A that was built by Raymond "Ray" Carr and is currently owned by Bruce R. Mathews of British Columbia, Canada.
